FG-series models are engineered for powder and fine
powder applications. |
■Features
1. Minimal dust generation: Dust generation is
minimized by maintaining a low clearance between the
product discharge port and the filled product impact
surface using a height-adjusting auger type filling
mechanism.
2. Stable accuracy: Suspension-type scales
with built-in load cells are used to weigh and fill
the products for high- and repeatable accuracy. A
filling station for secondary correction is not
necessary.
3. Handles multiple products: Easily
compatible with various product specifications,
including screen size, fill quantity, etc. There is
no changeover contamination since all parts in
contact with products being filled can be
disassembled for cleaning.
■Options
Auger funnel with vacuum de-aeration: Allows
compacted filling of bulky powders. A secondary
de-aerating system enhances the efficiency of the de-aeration
process. De-aeration filters can be fully disassembled
for cleaning.
|
 |
|
Specifications

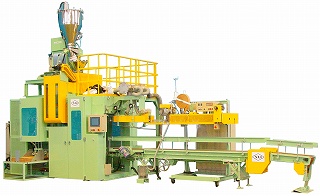

FG - B
|
| Capacity※1 |
150
bags/hr max. |
| Set
weight |
20 - 30
kg/bags |
| Bag
type |
Paper
Cloth bags
PE bags |
| Bag size
※2 |
Width of empty bag |
380 -
460 mm |
|
Length of empty bag
|
750 to
950 mm |
| Air
consumption |
FG-A2:1,000NL/min
FG-A2:1,300NL/min |
| Power requirements |
27.0 kW |
| Weight |
5.0 t |
※1Varies with
the product and operating environments.
※2Contact us for
applications involving common use of different
bags, use of special bags, and bag dimensions
and set weights outside the above range.
|
|
|

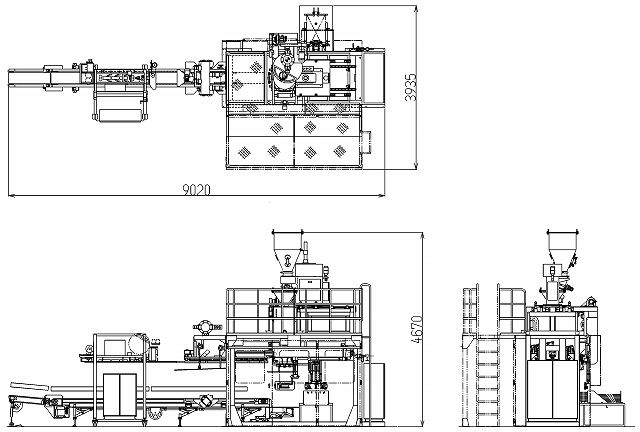

OUTWARD
DIMENSIONS
|
 |
 Dimensions vary with specifications.
|
Specifications
FG - BD
|
| Capacity※1 |
230
bags/hr max. |
| Set
weight |
20
- 30 kg/bags |
| Bag
type |
Paper
Cloth
bags
PE
bags |
| Bag
size ※2 |
Width of
empty bag |
380
- 460 mm |
|
Length of empty bag
|
750
to 950 mm |
| Air
consumption |
2,000
NL/min |
| Power
requirements |
37.0
kW |
| Weight |
7.0
t |
|
 |
|
|

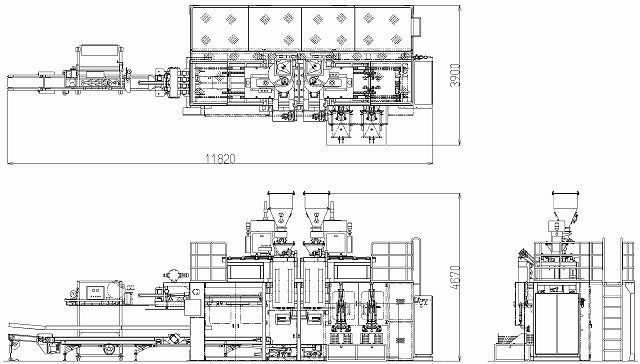

OUTWARD
DIMENSIONS
|
 |
 Dimensions vary
with specifications.
 |
|
Specifications

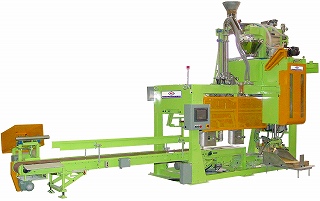

FG - C2
|
| Capacity※1 |
150
bags/hr max. |
| Set
weight |
20
- 30 kg/bags |
| Bag
type |
Paper
Cloth
bags
PE
bags |
| Bag
size ※2 |
Width
of empty bag |
380
- 460 mm |
|
Length of
empty bag
|
750
to 950 mm |
| Air
consumption |
FG-C2:1,000NL/min
FG-C2:1,300NL/min |
| Power
requirements |
22.4
kW |
| Weight |
4.0
t |
|
|
|

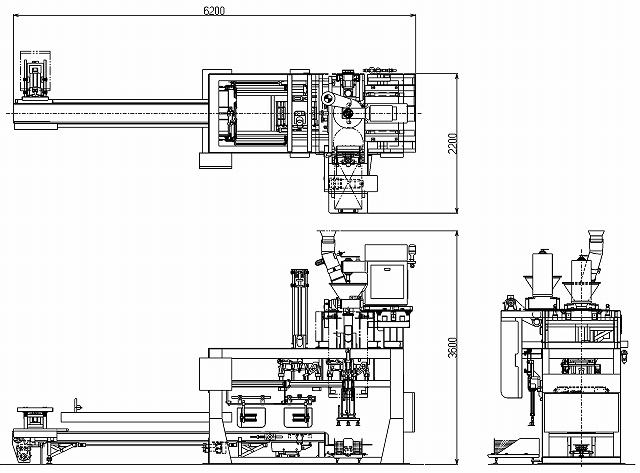

OUTWARD
DIMENSIONS
|
 |
Dimensions
vary with specifications. |
|
|
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
