Features excellent versatility for paper and PE bags.
Compact and economic design for outstanding performance
in both powder and granular applications. |

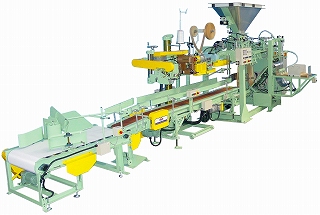

The
model 3CM-3 automatic packaging machine for heavy
duty bags handles various bag materials such as
paper, PE, and PE woven-cloth. It is suitable for
many kinds of powder and granular products. This
system is used extensively in many industries,
exhibiting excellent performance and contributing to
plant optimization. The new design is more compact
more efficient, and with more economical
specifications. Operability and safety have also
been upgraded to meet user needs.

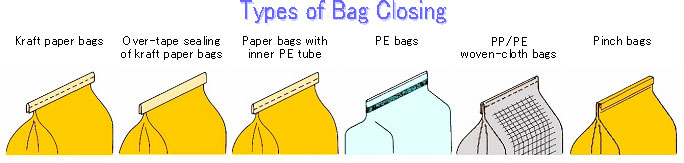

The machine handles a variety of bag types simply by
changing the bag sealing section. Any type of
weigher can be connected.
|
|
|
Specifications
|
| Capacity※1 |
1,200
bags / hr max. |
| Set
weight |
20 - 30
kg/bags |
| Bag
type |
Paper
paper-cloth
laminated bags
Cloth bags
PE bags |
| Bag size
※2 |
Width of empty bag |
380 -
460 mm |
|
Length of empty bag
|
750 to
950 mm |
| Air
consumption |
2,000
NL/min |
| Power requirements |
8.0 kW |
| Weight |
4.0 t |
※1Varies with
the product and operating environments.
※2Contact us for
applications involving common use of different
bags, use of special bags, and bag dimensions
and set weights outside the above range.
|
|

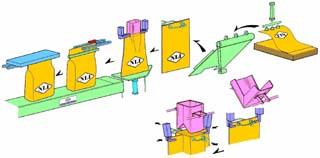

Filler |
Bag take-out and bottom tapping
unit
Feeder
|
|
|

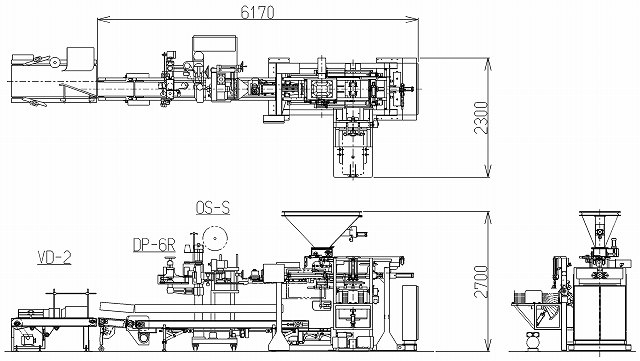

OUTWARD
DIMENSIONS
|
 |
 Dimensions vary with specifications. |
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
