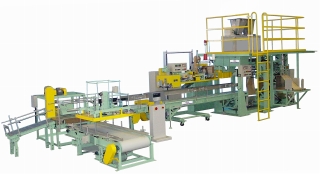

Gross Weighing Series |
|
1. Gross
weighing system featuring low equipment height,
reduced footprint, compact design, and
economical cost.

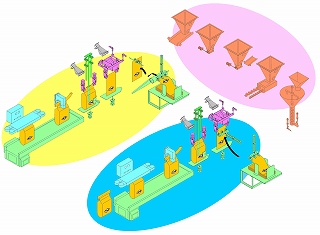

2. The product supply system can be chosen
according to the properties of the
product.
3. Applicable for a wide range of products, from
free-flowing materials to fine powder.
4. Chance of low bagged product weight due to
adhesion or air dispersion is reduced since the
product is discharged directly into the bag.
|
|
|
Specifications
|
| Capacity※1 |
300/250
bags/hr max. |
| Set
weight |
20
- 30 kg/bags |
| Bag
type |
Paper
Cloth
bags
PE
bags |
| Bag
size ※2 |
Width of
empty bag |
380
- 460 mm |
|
Length of empty bag
|
750
to 950 mm |
| Air
consumption |
500
NL/min |
| Power
requirements |
4.3/3.2
kW |
| Weight |
2.5/2.0
t |
※1Varies
with the product and operating
environments.
※2Contact
us for applications involving common
use of different bags, use of special
bags, and bag dimensions and set
weights outside the above range.
|
Load cell (3 places)
Weigh mechanism
Gross weighing uses a 3-point load cell
hanging system. Functions include
automatic correction of drop height,
automatic zero adjust (tare erase),
estimated discharge, discharge
correction, memory and integration, and
digital display. |
|
|
OUTWARD
DIMENSIONS
|

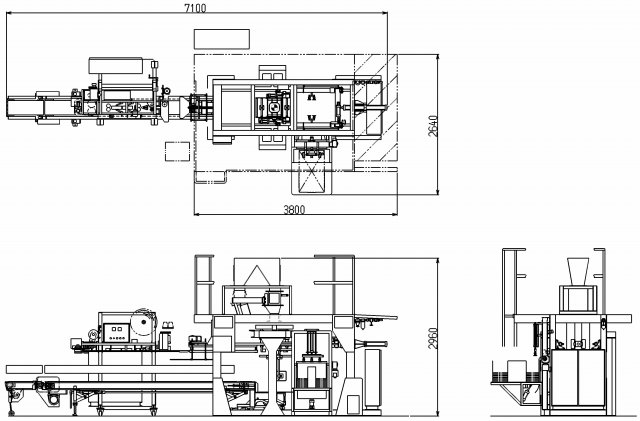

3CM - 3G
＊The
product supply unit comprises an electromagnetic
feeder and a cut gate.

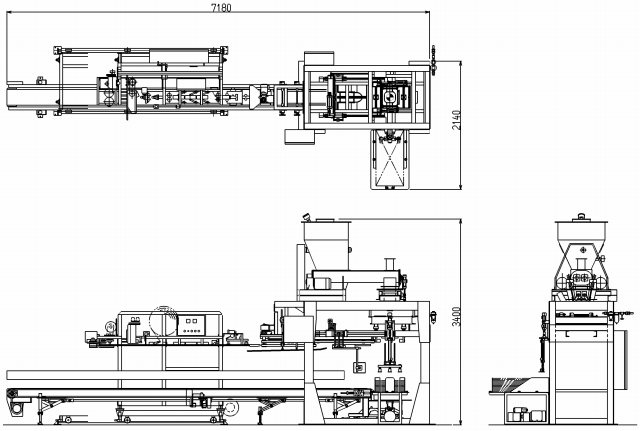

3CM - 5G
＊The product
supply unit is the screw feeder type. |
 Dimensions vary with
specifications. |
- Specifications should be
changed without previous notice
- There are some differences
between shown picture and specifications of
each MODEL.
- Diversion without permission
should be prohibited.
|
|
|
