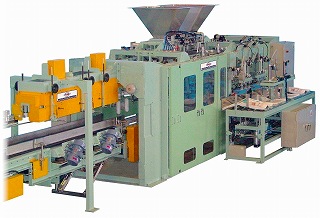

3CM-PDS is designed and
developed within the model 3CM-P series.
It incorporates a
double bag filling system with servo motor drive for
traverse bag advancement movement. This design
achieves 2,000 bags per hour in 20-50kg
applications.
A fully automated packing
line with effective space utilization can be
realized by the installation of the model 3CM-PDS in
connection with an existing production line.
|
 |
|
Specifications
|
| Model |
3CM-PDS /
3CM-PD* |
| Capacity※1 |
2,000 / 1,800
bags/hr max. |
| Set weight |
20 - 30
kg/bags |
| Bag size ※2 |
Width of empty bag |
380 - 460
mm |
|
Length of empty bag
|
750 to
950 mm |
| Air
consumption |
2,000 /
3,000 NL/min |
| Power requirements |
21.0 /
16.0 kW |
| Weight |
6.0 t |
※1Varies with the
product and operating environments.
※2Contact us for
applications involving common use of different
bags, use of special bags, and bag dimensions
and set weights outside the above range.
|
 |
 |
|

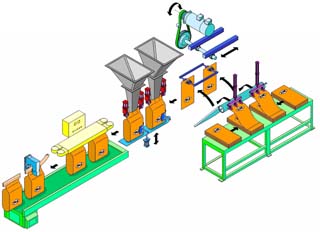

4-block bag magazine
|
Double bag aligner &
double bag take out device
|
|
|

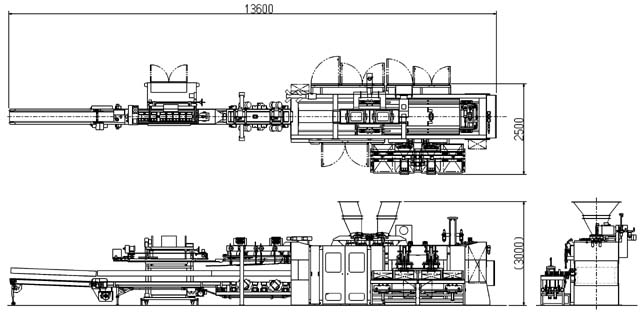

OUTWARD
DIMENSIONS
|
|
|
 Dimensions vary with specifications. |
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
