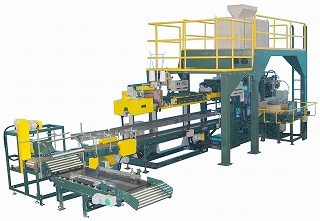

The model 3CM-P automatic packing machine series is designed to handle a variety of bag materials, including paper, woven-cloth and polyethylene. It is sued on a wide range of material applications, including fertilizer, animal feed, resin pellets, chemical, and various kinds of powder materials. It is possible to attach a vibratory air-ridding device on the 3CM-P series in order to meet diverse applications.

Design Features:

1. High-speed bagging capacity.  Maximum speed is 1,200 bags per hour for 20-30 kg bags.

2. Possible to use variety of bag types 3CM-P can be used with paper bags, PP/PE woven-cloth bag, and heavy-duty polyethylene bags.  For paper and woven-cloth bags, sewing machine models DS-6 or DS-9 are used to close the top.  For PE bags, NLI heat sealer model HS-9 is specified.

3. Reliable positive detection system.  No power or other product is spilled if a bag is not in position, due to inspection by a 4-point check device in the positive detection system.

4. High-speed continuous packing by automatic bag feeder Horizontal 3-block bag magazine with automatic bag feed and a capacity of 300 bags make high-speed packing possible.

5. Automatic safety system Each functional component is equipped with a safety device (lamp and buzzer signals) to ensure automatic and continuous operation.

6. Elimination of producct spillage and to dusty air collection A special shutter and air borne dust collection can be attached to discharge chute to eliminate spill of product and to collect dusty air.

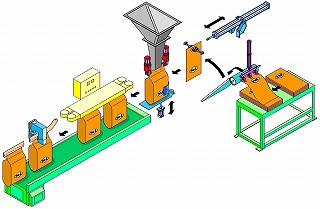

3CMP Irasuto
Capacity※1 1,200 bags / hr max.
Set weight 20 - 30 kg/bags
Bag type Paper
paper-cloth laminated bags
Cloth bags
PE bags
Bag size ※2 Width of empty bag 380 - 460 mm
Length of empty bag
750 to 950 mm
Air consumption 2,000 NL/min
Power requirements 8.0 kW
Weight 4.0 t
※1Varies with the product and operating environments.
※2Contact us for applications involving common use of different bags, use of special bags, and bag dimensions and set weights outside the above range.

Standard safety mechanisms
 Standard type
 ○Detector for low remaining bag count
 ○Detector for failure of bag clamping
 ○Detector for failure of bag top opener
 ○Removal device for failure of bag
        clamping aor bag top opener

 ○Detector for abnormal air pressure

 With heat sealer type
 ○Detector for heater band breakage
With sewing machine head
Standard type
○Detector for thread break
○Detector for low remaining quantity of thread
○Detector for low remaining quantity of crepe tape

○Detector for crepe tape break
○Detector for fail stitching failure
Air ridding device by vibration on conveyor
3CMP Sousaban
Operating panel, bag magazine and filling device

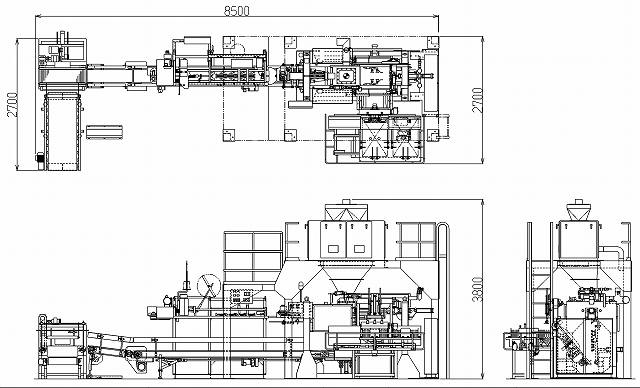

3CMP Gaikeizu
Dimensions vary with specifications.
  • Specifications should be changed without previous notice
  • There are some differences between shown picture and specifications of each MODEL.
  • Diversion without permission should be prohibited.
