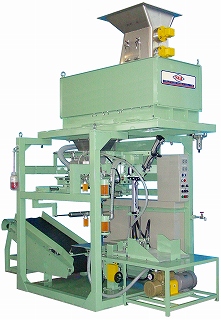

Multi-purpose Machine for Free-flowing as well as Powder
Applications
1. Either Volume
or weight measurement can be selected.
Suitable for a wide range of applications since the
supply system can be specified (screw feeder, cut
gate, belt feeder, etc.) according to the nature of
the product (powder or free-flowing).
2. Space saving
dimensions and simple design.
3. An impulse
sealer is built into the machine eliminating the
need to connect a heat sealer downstream.
Specifications
Capacity※1
350
bags / hr max.
Set
weight
18 - 23
kg / bags
Bag
type
PE
bags
Bag size
※2
Width of empty bag
380 -
460 mm
Length of empty bag
750 to
950 mm
Air
consumption
350 NL
/ min
Power requirements
3.2 kW
※1Varies with
the product and operating environments.
※2Contact us for
applications involving common use of different
bags, use of special bags, and bag dimensions
and set weights outside the above range.

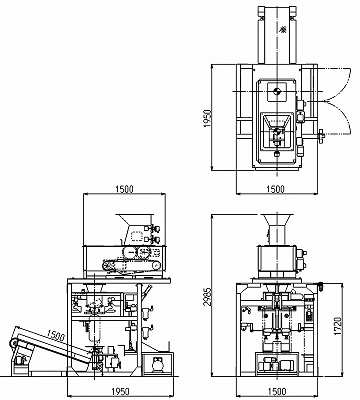

OUTWARD
DIMENSIONS
Dimensions vary with specifications.
Specifications should be changed
without previous notice
There are some differences between
shown picture and specifications of each MODEL.
Diversion without permission should
be prohibited.
Celebrating the 75th
anniversary of the foundation, NewLong Industrial Group is
starting for the 21st century with the renewed Company’s Logo. Also, we are starting DIRECT COMMUNICATION with
Customers for Manufacturing and Sales.
Dimensions vary with specifications.
