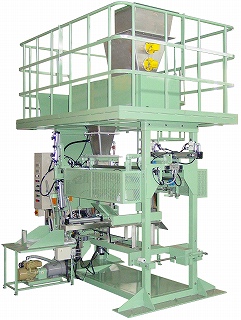

Fully Automatic Bagging Machine With Built-In Scale
Model 3CM-52 automatically
packs various granular or powder products such as
gardening soil, gravel, and fertilizer in PE bags, Bag
feed, set volume filling, bag seal, and discharge are
controlled simply by pushbutton. The compact machine
with small footprint also improves the working
environment and saves labor. This small-sized
set-volume filling machine was developed by Newlong
Industrial and is available in two models.
Specification of model 3CM-52 or 3CM-52M depends on
production volume.
Specifications
Capacity※1
450
/ 400 bags / hr max.
Set
weight
16-2 2
/2-6 kg / bags
Bag
type
PE
bags
Bag size
※2
Width of empty bag
380 -
460 mm
Length of empty bag
750 to
950 mm
Air
consumption
400 NL
/ min
Power requirements
4.9 /
6.2 kW
※1Varies with
the product and operating environments.
※2Contact us for
applications involving common use of different
bags, use of special bags, and bag dimensions
and set weights outside the above range.

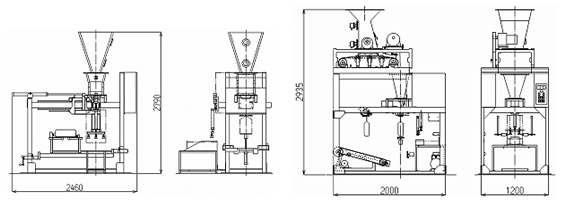

OUTWARD
DIMENSIONS
3CM
-52
3CM - 52M
Dimensions vary with specifications.
Specifications should be changed
without previous notice
There are some differences between
shown picture and specifications of each MODEL.
Diversion without permission should
be prohibited.
