STABLE
HEAT SEALING IRRESPECTIVE OF
OPERATIONS.

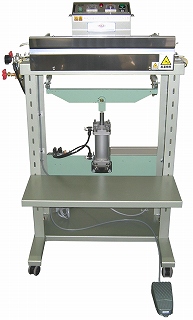

SG-600RC
|
|
Simplified
sealer for inner PE ply in paper bags
and continuous KS type (high capacity)
are also available.
Use
Seal of
inner PE ply in paper bags.
Seal of laminate film.
|
| Specifications |
| Heater bar |
600 (L) x 15mm (W),
vertical type |
| Power |
100V - 1000W |
| Timer |
Multi-timer |
| Drive |
Air cylinder 63φ x 50st |
| Floor space |
880×500×950mm (H) |
| Weight |
Approx. 70kg |
Traverse
teeth-like seal pattern is the standard.
200VAC machine is available on request. |
|
 Dimensions
vary with specifications.
|
|
|
Dimensions
vary with specifications.
|
|

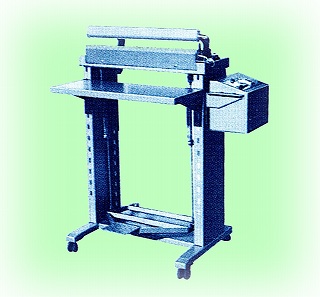

SG-600R
|
|
Low-priced Foot-operated Heat Sealer
Use
Seal of
inner PE ply in paper bags.
Seal of laminate film.
|
| Specifications |
| Heater bar |
600 (L) x 15mm (W),
vertical system |
| Power |
100V - 1000W |
| Timer |
Multi-timer |
| Floor space |
880×500×950mm (H) |
| Weight |
65kg |
|
Traverse teeth-like seal pattern is
the standard.
200VAC machine is available on
request.
|
|
|
|

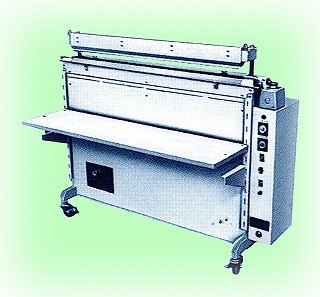

SG-850EA
SG-1000EA
|
|
Automatic Heat Sealer, Wide Type
|
| Specifications |
| Seal |
850 (L) x 5 or 10mm
(W)
1000 (L) x 5 or 10mm (W) |
| Power |
200V - 1500/2000W
2500/4000W |
| Timer |
0.2-1.5s |
| Drive |
Air cylinder 63φ x 50st |
| Floor space |
1200×500×1500mm (H) |
| Weight |
100kg |
Cut by
fusion with round wire is also
available.
Heat sealer SG-800RA．1000RA |
|
Dimensions
vary with specifications.
|
|
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
