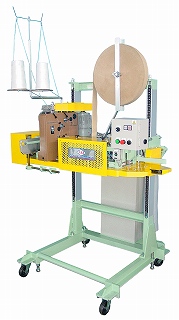

A slitter is provided. No need of too
much strict about bag inserting angle.
Taping is performed easily and neatly.
|
|
|
|
Specification
|
|
Sealing speed
|
6 - 10m/min
|
|
Motor for sewer
|
0.4kW
|
|
Motor for sealer
|
0.4kW
|
|
Power requirement
|
1kW
|
|
Machine length
|
1,410mm
|
|
Weight
|
Approx. 250kg
|
|
Crepe tape width
|
Std. 55m
(55 - 75mm)
|
|
Type of closure
|
Sewn with crepe
tape
|
|
Air consumption (5kg/c㎡; varies with
speed）100Nl/min. Sealer height adjust
range: 800 - 1400mm
The above speed is not a guaranteed
speed. Use it as a guide.
|
|
|
|

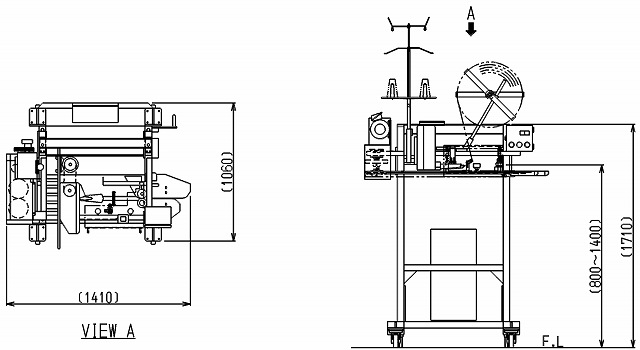

OUTWARD
DIMENSIONS
|
|
|
 Dimensions vary with specifications. |
|
Seal-bag Top
Closing Sewing Machine DS-7C
|
|
|
|
Fewer parts than conventional machines
are used for lower possibility of failure and easier
maintenance.
Bags are fed between top and bottom feed dogs,
synchronizing with auto bag transfer mechanism.
Speed: 1,600rpm max.; Stitch width:
7.6mm (fixed);
Needle: DN-H29 #26; Thread cutter: auto tape cutter
|
