FILLED BAG CLOSING MACHINE
WITH INNER FILM- SEALER
REAR SEWING MACHINE TYPE
|
|
|

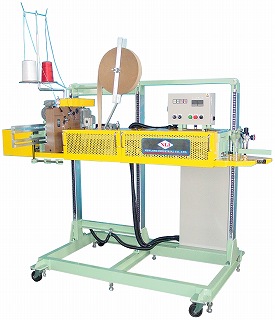

 Photograph is model KS-23 |
|
Standard
Specification
|
|
Specs
|
Sealing speed
|
Heater (W)
|
Drive (kW)
|
Power (kW)
|
|
Range
|
Capacity
|
Sealer
|
Sewer
|
|
KS-S
|
6 ~ 10m/min
|
-
|
0.4
|
0.4
|
1
|
|
KS-23
|
500 x 6
|
0.4
|
4
|
|
KS-23D
|
|
KS-24
|
500 x 8
|
0.4
|
5
|
|
KS-24D
|
|
KS-26
|
500 x 12
|
0.75
|
7.5
|
|
KS-26D
|
|
|
Standard
Specification
|
|
Specs
|
Dimensions (mm)
|
Weight
(kg)
|
Options
|
Applications
|
|
Length
|
Width |
Dust cleaner
|
Crepe tape
|
|
KS-S
|
1,320
|
1,110 |
ca.250
|
-
|
standard
equipment
|
Crepe tape only
|
|
KS-23
|
2,240
|
1,290 |
ca.420
|
-
|
Flat 3 paper plies
with innermost
ply PE film seal.
|
|
KS-23D
|
2,560
|
1,290 |
ca.450
|
○
|
|
KS-24
|
2,450
|
1,290 |
ca.450
|
-
|
Flat 4 paper plies
with inner ply
seal.
|
|
KS-24D
|
2,770
|
1,290 |
ca.500
|
○
|
|
KS-26
|
2,910
|
1,290 |
ca.520
|
-
|
Flat 6 paper plies
and gusseted 3
paper plies with
inner ply seal.
|
|
KS-26D
|
3,230
|
1,290 |
ca.600 |
○
|
|
- Temp. adjust range 0 to 400℃
- Air req. 200NL/min(at 0.5MPa)
Pressure 0.5Mpa(5kg/c㎡) (varies with speed)
- Sealer height adjust range
800～1400mm
- Add 0.55KW(50Hz) or 0.72KW(60Hz)
power when optional dust cleaner is installed.
- Above speeds are not guaranteed
ones. They are given for reference only.
- Length of the machine (L) varies
slightly between manual insertion type and packaging
machine coupling type.
- ＫＳ ー ２□ Ｄ
- Kraft sealer ― ２：Rear sewer □：Heater
pairs Ｄ：Dust cleaner Ｓ：Crepe tape + sewer only （KS-S
only）
|
|

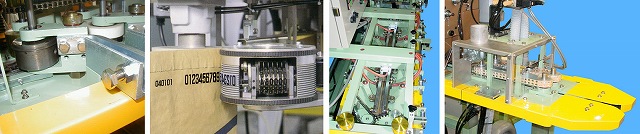

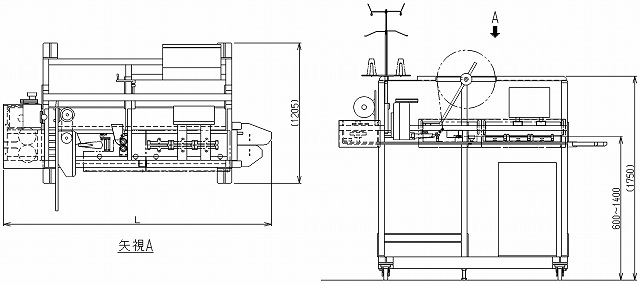

OUTWARD
DIMENSIONS
|
|
|
Dimensions vary with specifications. |
|
|
|
Perforated Line
|
Printer
|
Heater
|
Dust cleaner
|
|
|
Seal-bag Top
Closing Sewing Machine DS-11,DS-7A/C
|
|
|
|
|
|
|
|
Patent applied
|
Thread cutter :
A-Automatic thread cutter
C-Automatic crepe tape cutter
|
|
- Virtually sealed up OMPB top closing
with heatsealable over-tape or innermost ply PE film
seal.
- Crepe-tape bound closure.
- No failure and easy maintenance
because of fewer parts than conventional sewers.
- Upper and lower bag feeder
synchronizes with the automatic bag feeder mechanism.
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
