HI-PERFORMANCE SEALER FOR
PINCH BAGS
|
|
|

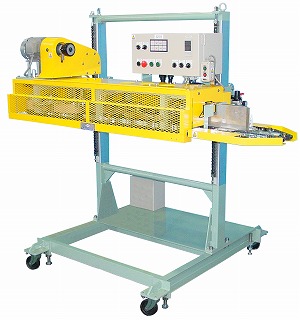

PBC-S
Carrier chain
type for single pinch bags
Belt type PBC-S is also available
|
|

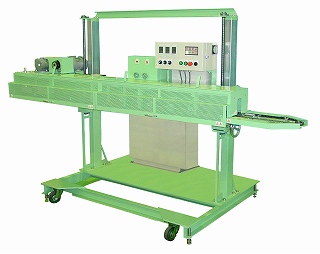

PBC-3W
Carrier chain
type for single/double pinch bags
|
|
|
|

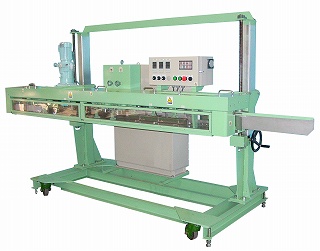

PBS-3W
V-belt type for
making double
pinch bag packaging compact
|
|
|
|
|

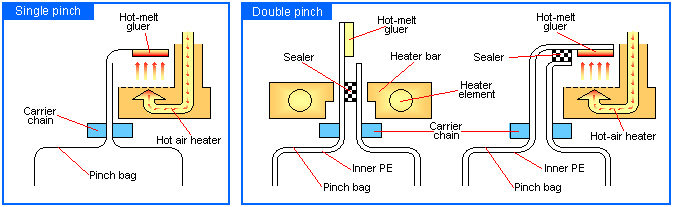

Pinch bag (single
pinch)
Bag top is folded 90 degrees; hot-melt glue is
melted by hot air; bag top is further folded
90 degrees; and the flap is pressed between
belts to be sealed.
|
Pinch bag with
inner PE ply (double pinch)
Inner PE ply is preheated and heat-sealed
through the outer paper plies, and then
hot-melt glue is melted by hot air from the
heaters for perfect seal.
|
 |
|
|
Specifications
|
PBC-S
|
PBS-S
|
PBC-3W
|
PBS-3W
|
|
Bag type
|
3 paper plies
(gusseted)
|
3 paper plies
(gusseted)
|
3 paper plies +
inner PE
|
3 paper plies +
inner PE
|
|
Seal speed
(m/min)
|
6-14
|
6-14
|
6-12
|
6-12
|
|
Folding depth
(mm)
|
45
|
45
|
50
|
50
|
|
Drive (kW)
|
0.75
|
0.4
|
0.75
|
0.4
|
|
Air (NL/min)
|
400
|
400
|
800
|
800
|
|
Heater capacity
(kW)
|
C=3kW
|
C=3kW
|
A/B/C=3kW ea.
(total 9kW）
|
A/B/C=3kW ea.
(total 9kW）
|
|
|
Length
(mm)
|
2,320
|
1,975
|
3,424
|
3,290
|
|
Weight
(mm)
|
1,250
|
1,515
|
1,280
|
1,113
|
|
Height
(mm)
|
1,752
|
1,880
|
1,790
|
1,800
|
|
Sealer gross weight (kg)
|
280
|
300
|
480
|
500
|
|
Measurements
(cft)
|
200
|
200
|
220
|
220
|
|
Shipping weight
(kg)
|
550
|
550
|
1,250
|
1,250
|
|
|
|
|
|
|
Carrier Chain
Carrier chains hold the bag top
firmly and traverse throughout the process
with the bag held, preventing slippage of
sealing position.
|
Pre-heater
The inner PE is perfectly
sealed using the pre-heaters and heater bars
of the PBC-3W.
|
Hot-air Heater

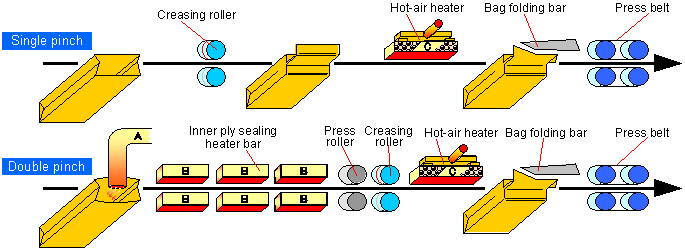

Bag top is folded 90 degrees;
hot-melt glue is melted by hot air; and the
bag top is further folded 90 degrees.
|
|
|
|
|
|
Press Belt
Press belts press and cool the
bag top to firmly close the bag.
|
Option (motor driven
vertical adjust)
The sealer body is vertically
moved with a pushbutton switch on the
operation side.
|
Printer (Option)
The automatic ink type printer
operates integrally with the pinch sealer.
Print appears precisely at the specified
position using a sprag clutch and a
microswitch. Letter types are easily replaced.
|
|
|
OUTWARD
DIMENSIONS
|

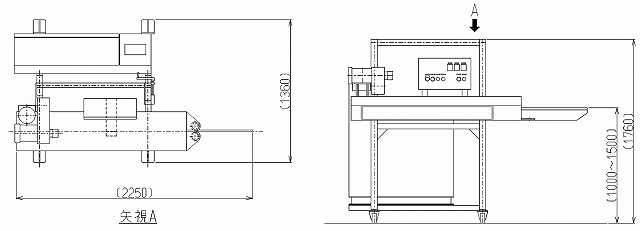

 PBC-S
|

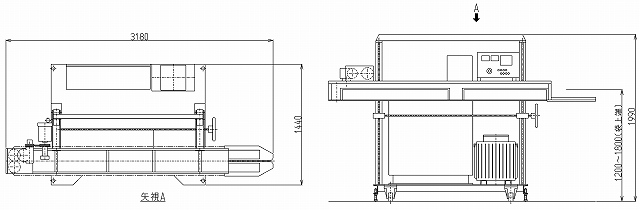

 PBC-3W
|

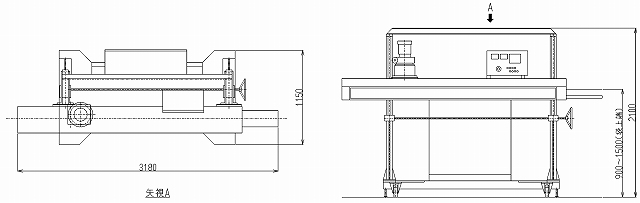

 PBS-3W
|
 Dimensions vary with specifications. |
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
