Bags are sealed without stopping the conveyor
because the impulse heater seals the bag while
moving at the same speed as the bag delivery chains.
Will seal gusset bags.
The impulse sealing method assures quick
temperature rise to start operation in a short time
period.
High thermal efficiency because bags are sealed
under pressure. Effective also for powder packing.
Low power consumption and small footprint.
Rewinding type Teflon sheets for heater wire
protection.
STABLE
HEAT SEALING IRRESPECTIVE OF
OPERATIONS.

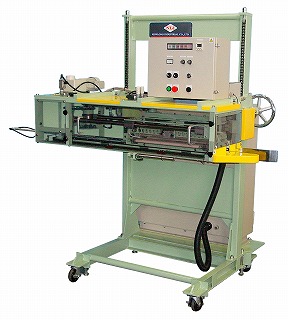

SG-600RC
Simplified
sealer for inner PE ply in paper bags
and continuous KS type (high capacity)
are also available.
Use Seal of
inner PE ply in paper bags.
Seal of laminate film.
Specifications
Heater wire width
5mm
Impulse control
Temp. control
Heater move stroke
450mm
Max. bag width
460mm
Conveyor speed
（mm/sec）
Seal time
MAX(sec)
Estimated
capacity（B/H）
6
3.9
600
8
2.78
800
10
2.1
1000
12
1.65
1200
14
1.33
1400
16
1.09
1600
Special
order: Impulse heater width and stroke
may be varied according to bag width and
capacity.
Dust cleaner and trimmer may be mounted.

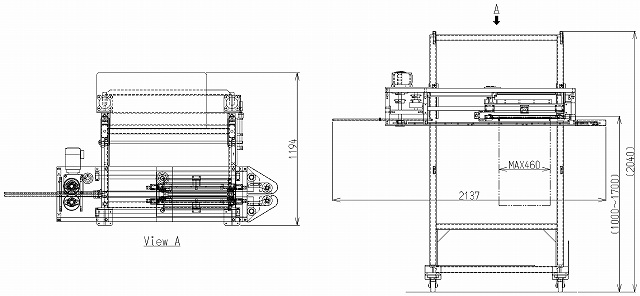

OUTWARD
DIMENSIONS
Dimensions vary with specifications.
Specifications should be changed
without previous notice
There are some differences between
shown picture and specifications of each MODEL.
Diversion without permission should
be prohibited.
