HORIZONTAL
TYPE WITH DEAERATOR AND IMPRINTER

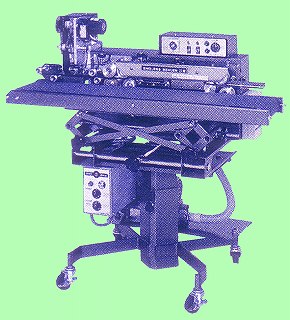

EDV-25HP
|
|
FEATURES
The
Model EDV-25HP is a standard Type III
Endless Sealer provided with deaerator
and imprinter. Air is drawn from the
bag by a blower. The draw force is
adjustable. The machine is used as a
standard unit by setting the
deaeration selector switch to OFF.
|
| Specifications |
| Seal band |
15 and 25mm |
| heater bar width |
7, 10 and 20mm |
| Conveyor belt angle |
0
- 45° |
| Seal speed |
0-13m/min variable |
| Seal width |
10 and 20mm |
| Power |
100V - 1050W |
| Temperature control |
Electronic temperature
controller 0 - 300℃ |
| Belt width |
200mm; vertically
adjustable 100mm max |
| Floor space |
1115 x 510 x 1000mm (H) |
| Weight |
60kg |
For
general use/crossline, traverse and
solid
Options/wide conveyor, deaerator,
imprinter |
|
 |
|
 |
|

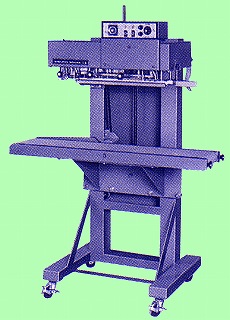

EDS
|
|
FEATURES
Goods
which will fall if a bag is not stood,
It is the best for an independence bag
and water goods.
|
| Specifications |
| Seal speed |
0 - 13m/min variable |
| Seal width |
10 and 20mm |
| Power |
100V
- 900W |
| Conveyor belt width |
200mm |
| Temperature control |
Electronic temperature controller 0 -
300℃ |
| Height adjustable conveyor |
310mm |
| Floor space |
1250×465×1345mmH |
| Weight |
60kg |
|
|
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
