HS

The HS series heat sealers are released by Newlong Industrial who has been developing machines to seal all types of bags. The sealers are used for all types of grains and powdery products including rice, animal feed, fertilizer, salt and food.

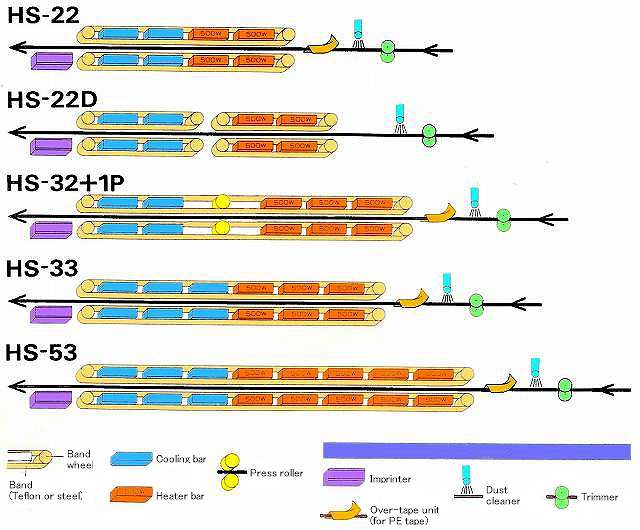

Models include HS-22, HS-22D, HS-32+1P, HS-33 and HS-53 to cover all types of closures for heavy PE bags.

Features

  • Band seal type: models with many heater blocks are good for both PE bags and paper bags with an inner PE ply.
  • Teflon or steel band type is available. Type of bag and the product to be packed determine which to use.
  • Teflon bands are easily cooled and produces nice-looking seals. They are most suitable for sealing PE bags.
  • Imprinter can be retrofitted
  • Specifications for the HS Series
  • a) Either air or water cooling is available. Select one according to bag type, packing environment, etc.
  • b) Some models may be installed with optional trimmer, over-tape unit and dust cleaner.
  • c) The horizontal type is suitable for making bags.
Specifications
HS-22
HS-22D
HS-32+1P
HS-33
HS-53
Seal speed
(m/min)
7 - 20 stepless
Seal film
PE/PP
Total thickness (mm),
max
0.8
1.0
1.0
1.0
1.0
Seal width (mm)
7
Temp control
(max temp)
Fully electronic (400℃)
Sealer height
adjust range (mm)
1,000 - 1,300
Heater capacity
(W)
500 x 4
500 x 4
500 x 6
500 x 6
500 x 10
Cooling system (kW)
Air (0.2) or water cooling
Sealer
motor
(V)
200 / 220
(kW)
0.4

Sealer
dimensions

Length
(mm)
1,700
2,300
2,150
2,150
2,500
Weight
(mm)
1,000
1,000
1,000
1,000
1,000
Height
(mm)
1,700
1,700
1,900
1,900
1,900
Sealer weight (kg)
145
150
180
180
210
Options
Trimmer, over-tape unit, dust cleaner, imprinter (machine dimensions will vary).

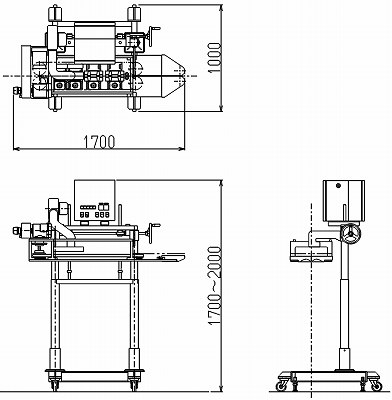

OUTWARD DIMENSIONS
Dimensions vary with specifications.

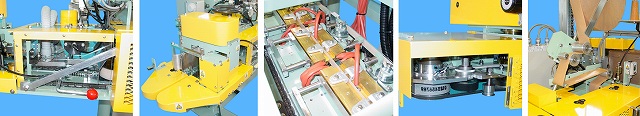

Dust cleaner
Trimmer
Heater
Imprinter
Over-tape unit

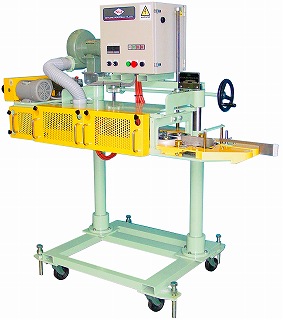

HS-22-SD : Heat sealer for both as Kraft bag and PE bag
  • Specifications should be changed without previous notice
  • There are some differences between shown picture and specifications of each MODEL.
  • Diversion without permission should be prohibited.
