Model

Speed

200 tubes/min.

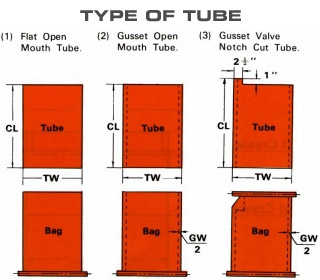

Type of Tube

as shown below

Cutting Length (*1) (CL)

Tube Width (gusseted) (TW)

14.5-19.5”(368-495 mm)

Tube Width (flat) (TW)

14.5-23.5”(368-597 mm)

Gusset Width (GW)

3-6”(76-152 mm)

Valve Extension Height (VH)

1”(25.4 mm)

Valve Extension Width (VW)

2.5”(64 mm)

Number of Ply

Upto 6 plies

Paper Width

Max.48”(1,219 mm)

Paper Roll Diameter (*2)

Standard 39”(991φmm)

Main Drive Motor

15KW

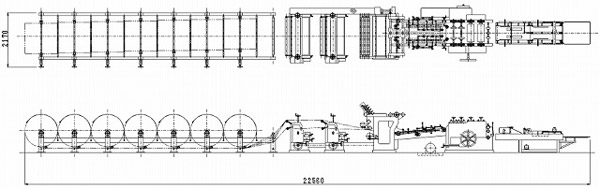

Machine Dimension (*3)

ca L20.0 m×W1.9 m×H2.0 m

Net Weight (*3)

ca. 16.5 tons

Gross Weight (*3)

ca. 20.0 tons

Measurement (*3)

ca. 2,400 cft

End Printer

6M-5000 oily / 4 color

(*1) Variable in 1/2”steps, by replacing change gears; one gear included, others available at extra cost.
(*2) Paper roll stand for 43”(1,100 mm), 47.5”(1,200 mm)or 51”(1,300 mm) available at extra cost.
(*3) figures given to machine including seven roll stands (991mm dia roll), and three printers.
