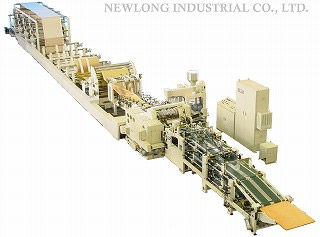

 Photograph is model 15M with optional
equipment. |
|
SPECIFICATIONS
|
|
Model
|
15M
|
|
Capacity (*1)
|
Max. 280 tubes/min.
|
|

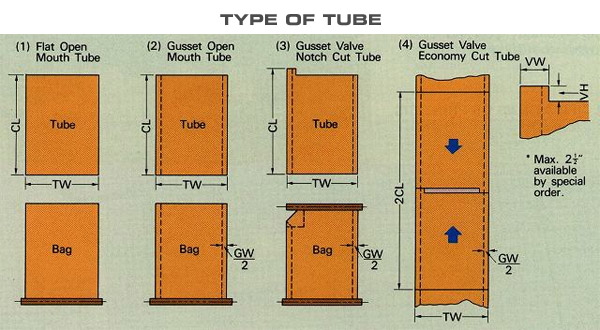

Type of Tube
|
as shown next page
|
|
Cutting Length (*2) (CL)
(2CL)
|
20-43”(508-1,092 mm)
20×2-40”×2 (1,016-2,032 mm)
|
|
Tube Width (gusseted) (TW)
|
14.5-19.5”(368-495 mm)
|
|
Tube Width (flat) (TW)
|
14.5-23.5”(368-597 mm)
|
|
Gusset Width (GW)
|
2.5-6”(63-152 mm)
|
|
Valve Extension Height (VH)
|
1-2”(25-51 mm)
|
|
Valve Extension Width (VW)
|
2.25-3”(57-76 mm)
|
|
Number of Ply
|
Upto 6 plies
|
|
Paper Width
|
Max.48”(1,220 mm)
|
|
Paper Roll Diameter (*3)
|
39.5”(1,000φmm)
|
|
Main Drive Motor
|
18.5KW
|
|
Machine Dimension
|
Approx. L30.0 m×W2.8
m×H2.6 m
|
|
Net Weight
|
Approx. 21.5 tons
|
|
Gross Weight
|
Approx. 21.5 tons
|
|
Measurement
|
Approx. 3,200 cft
|
|
End Printer
|
1FD aqueous / 2 color
15M-5000 aqueous / 4 color
|
|
(*1) Depending on various
conditions.
(*2) Variable in 1/2”steps, by replacing
change gears
(*3) Paper roll stand for 43”(1,100 mm),
47.5”(1,200 mm)
or 51”(1,300 mm) available at extra cost.
|
|
|
|
|

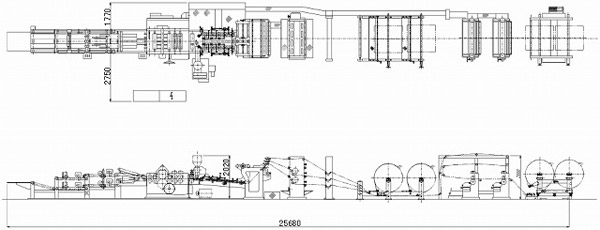

OUTWARD
DIMENSIONS
|
 |
Dimensions vary with specifications. |
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
