SPECIFICATIONS
|
Model
|
12M-1
|
12M-2
|
12M-3
|
Capacity
|
Max. 280 tubes/min. (*1)
|

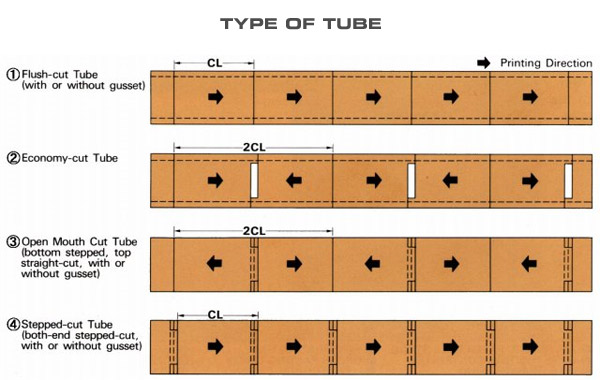

Type of Tube
|
Types 1 to 4
as shown below
|
Types 1 to 2
as shown below
|
Cutting Length (CL)
(2CL)
|
20-50”(508-1,270 mm) (*2)
20”×2-40” ×2 (1,016-2,032 mm)
|
Tube Width (gusseted)
(TW)
|
14.5-19.5”(368-495 mm)
|
Tube Width (flat)
(TW)
|
14.5-27”(368-685 mm)
|
Gusset Width
(GW)
|
2.5-7”(64-178 mm)
|
Valve Extension Height
(VH)
|
1”(25.4 mm)
|
Valve Extension Width
(VW)
|
2.25-3”(57-76 mm)
|
Number of Ply Flush &
Economy Cut
Step & Open Mouth
|
6
|
6
4
|
6
-
|
Paper Width
|
Max.55”(1,400 mm)
|
Paper Roll Diameter
|
Max.51”(1,300φmm) (*3)
|
E.P.C.
(Edge Position Controller)
|
6 units
|
4 units
|
(option)
|
Web Draw
|
For 6-ply
|
For 4-ply
|
For 6-ply
|
Cross Paste
|
For 6-ply
|
For 4-ply
|
-
|
Perforation
|
For 6-ply
|
For 4-ply
|
-
|
Main Drive Motor
|
22KW
|
18.5KW
|

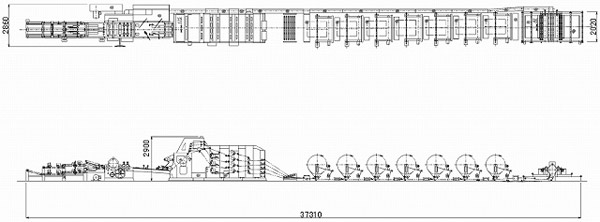

Machine Dimension
|
Approx. L39.5 m×W3.7 m×H3.0
m (*4)
|
Net Weight
(incl. Printer)
|
Approx. 37 tons
|
Approx. 35 tons
|
Approx. 30 tons
|
Gross Weight
(incl. Printer)
|
Approx. 43 tons
|
Approx. 40 tons
|
Approx. 34 tons
|
Measurement
(incl. Printer)
|
Approx. 6,000 cft
|
Approx. 5,500 cft
|
Approx. 5,000 cft
|
End Printer
|
1FD aqueous / 2 color
|
(*1) Depending on various
conditions.
(*2) Variable in 1/2”steps, by replacing
change gears.
(*3) Paper roll stand for 43”(1,100 mm)
available at extra cost.
(*4) Machine dimension varies depending on
machine construction.
|
