Tuber
21M
500M / 600M
SPECIFICATIONS
Model
545M
546M
550M
Max. Speed※
(bags/min)
300
250
Tube Length
(mm)
350~1050
450~1200
450~1350
Tube Width (w/o gusset)
(mm)
280～600
300～750
Tube Width (with gusset)
(mm)
280～400
300～550
Gusset Width
(mm)
Max.200
Number of Ply
Max.4
Paper Roll Width
(mm)
Max.1230
Max.1530
Paper Roll Diameter
(mm)
Max.1300
Type of Cutting
(mm)
A.B
Change of Cutting Length
Twin Gear Box
Type of Perforation,
Cross Pasting
One touch system
Main Drive Motor
(kW)
30
SPECIFICATIONS
Model
645M
650M
645M-S
650M-S
Max. Speed※
(bags/min)
250
Tube Length
(mm)
350~1050
450~1350
350~1050
450~130
Tube Width (w/o gusset)
(mm)
280~600
300~750
280~600
300~750
Tube Width (with gusset)
(mm)
280~400
300~550
280~400
300~550
Gusset Width
(mm)
Max. 200
Number of Ply
Max. 4
Paper Roll Width
(mm)
Max. 1230
Max. 1530
Max. 1230
Max. 1530
Paper Roll Diameter
(mm)
Max. 1300
Type of Cutting
(mm)
A.B
A.B
A.B.C.D
A.B.C.D
Change of Cutting Length
Two Gears included others option
Type of Perforation,
Cross Pasting
One touch system option
Main Drive Motor
(kW)
22
30
※Depending on various conditions.
Type of cutting : A.Step B.Flush C.Flush(by knife) D.Notchcut

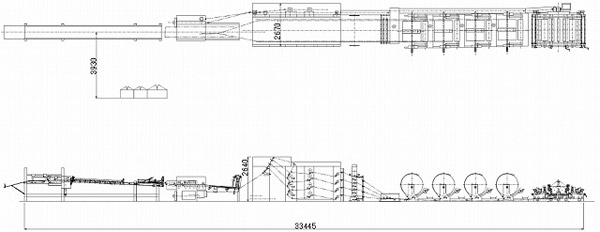

OUTWARD DIMENSIONS
Dimensions vary with specifications.
  • Specifications should be changed without previous notice
  • There are some differences between shown picture and specifications of each MODEL.
  • Diversion without permission should be prohibited.
