FLEXOGRAPHIC PRINTER FK SERIES

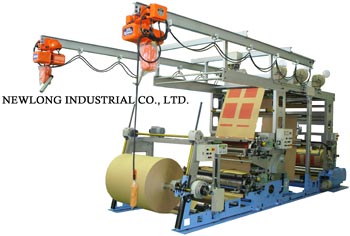

Stack-Type Flexographic Printer
This is a stack
type flexographic printing press for printing on
one side in either 2-color or 3-color print and
can be used in combination with a winding
machine. It is best suited for printing craft
paper which is most commonly used for square
bottom (SOS) bags, even in line with a bag
making machine. This machine is much more
economical than the conventional gravure
printing machine.
| SPECIFICATIONS |
| Model |
207/307FK+15R |
209/309FK+16R |
211/311FK+17R |
| Mechanical
Speed (m/min) |
Max.200 |
Max.200 |
Max.200 |
Print Width
(Max. mm) |
700 |
900 |
1,100 |
| Print
Length (10mmPitch) |
150-750 |
150-750 |
300-750 |
|
Paper Width (mm) |
780 |
980 |
1,180 |
| No.
Of Color |
2-3 |
2-3 |
2-3 |
| SPECIFICATIONS |
| Model |
212/312FK+19R |
214/314FK+18R |
|
| Mechanical
Speed (m/min) |
Max.180 |
Max.180 |
Print Width
(Max. mm) |
1,200 |
1,400 |
| Print
Length (10mmPitch) |
300-750 |
300-750 |
|
Paper Width (mm) |
1,280 |
1,480 |
| No.
Of Color |
2-3 |
2-3 |

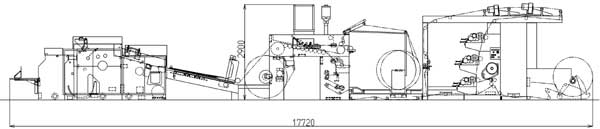

OUTWARD
DIMENSIONS
|
