FLEXOGRAPHIC PRINTER FF Series

Stack-Type Printer

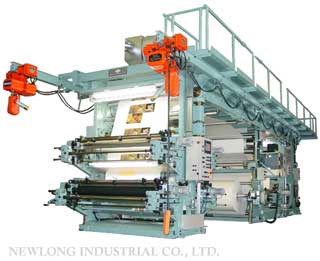

414FF
Models 412FF, 414FF, and 417FF are the state-of-the-art stack-type flexographic printers. They have been developed and manufactured using the latest electronic technology and micron-level high-precision mechanical technology.
Ceramic anilox rollers of excellent wear resistance are incorporated using the doctor blade system to realize high-precision printing.
As a special order, up to 2,500 mm printing width is available.

SPECIFICATIONS
Model 412FF 414FF 417FF
Web Width
(Max mm)
1,250 1,450 1,700
Printing Length
(10mm Pitch)
300-750 300-750 400-960
Printing Width
(mm)
1,200 1,400 1,650
Printing Speed
(Max m/min)
250 150
Number of Color 4
Web Diameter
(unwinder) (Max mm)
1,200φ(※※PE/PP Printing 1,100φ)
Web Diameter
(rewinder) (Max mm)
1,200φ(※※PE/PP Printing 1,100φ)
Drying System Gas, electricity or steam
Inking System Select either two rollers or doctor blade
Printing Materials Paper basis weight: 50-120 g/㎡
PE/PP film thickness: 0.02-0.08mm
Dimensions
※※※
(L×W×H)  (m)
9.0×4.8×3.6 9.0×5.0×3.6 9.0×5.3×3.6
Up to 2-color printing system may be added such as for varnishing after 4-color printing. Printing length is at 10mm pitch.
※※ PE/PP film may be printed by changing the rewinder.
※※※ Varies with machine configuration.




A commentary of the model series
In the case of  414FF + 114FF
414FF + 114FF 4 colors printing.
414FF + 114FF Maximum printing width is 1,400mm.
 There are 1,200mm and 1,700mm elsewhere.
414FF + 114FF with over-coating of water-soluble varnish
or
with over-coating of anti-ultraviolet rays measure
414FF + 114FF Maximum over-coating width is 1,400mm.
 There are 1,200mm and 1,700mm elsewhere.

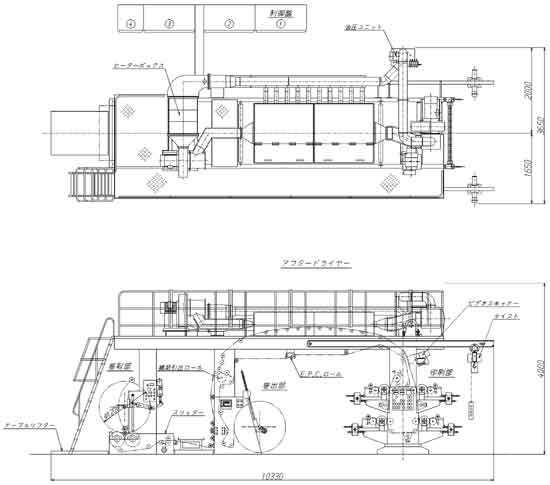

OUTWARD DIMENSIONS

FF414 Gaikeizu
