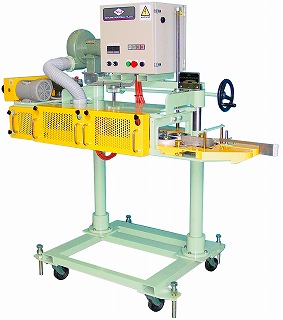

The HS series heat sealers are released by Newlong
Industrial who has been developing machines to seal
all types of bags. The sealers are used for all types
of grains and powdery products including rice, animal
feed, fertilizer, salt and food.
Models include HS-22, HS-22D, HS-32＋�?P, HS-33 and
HS-53 to cover all types of closures for heavy PE
bags.
|
|
 Features

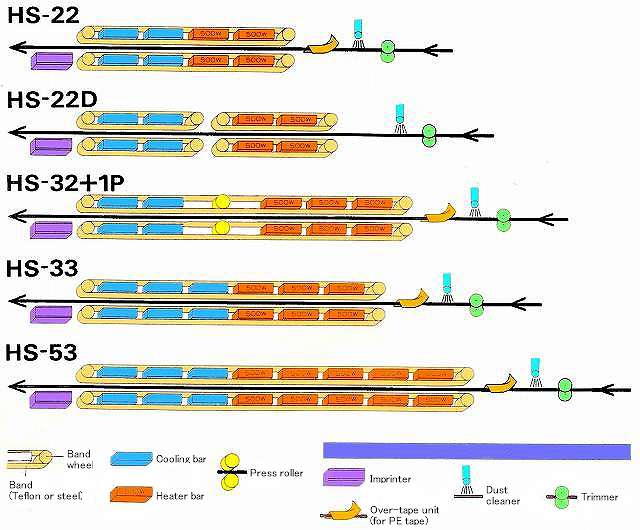

- Band seal type: models with many
heater blocks are good for both PE bags and paper
bags with an inner PE ply.
- Teflon or steel band type is
available. Type of bag and the product to be packed
determine which to use.
- Teflon bands are easily cooled
and produces nice-looking seals. They are most
suitable for sealing PE bags.
- Imprinter can be retrofitted
- Specifications for the HS Series
- a) Either air or water cooling is
available. Select one according to bag type, packing
environment, etc.
- b) Some models may be installed
with optional trimmer, over-tape unit and dust
cleaner.
- c) The horizontal type is
suitable for making bags.
|
|
Specifications
|
HS-22
|
HS-22D
|
HS-32+1P
|
HS-33
|
HS-53
|
|
Seal speed
(m/min)
|
7 - 20 stepless
|
|
Seal film
|
PE/PP
|
|
Total thickness (mm),
max
|
0.8
|
1.0
|
1.0
|
1.0
|
1.0
|
|
Seal width (mm)
|
7
|
|
Temp control
(max temp)
|
Fully electronic (400??
|
|
Sealer height
adjust range (mm)
|
1,000 - 1,300
|
|
Heater capacity
(W)
|
500 x 4
|
500 x 4
|
500 x 6
|
500 x 6
|
500 x 10
|
|
Cooling system (kW)
|
Air (0.2) or water cooling
|
|
Sealer
motor
|
(V)
|
200 / 220
|
|
(kW)
|
0.4
|
|
|
Length
(mm)
|
1,700
|
2,300
|
2,150
|
2,150
|
2,500
|
|
Weight
(mm)
|
1,000
|
1,000
|
1,000
|
1,000
|
1,000
|
|
Height
(mm)
|
1,700
|
1,700
|
1,900
|
1,900
|
1,900
|
|
Sealer weight (kg)
|
145
|
150
|
180
|
180
|
210
|
|
Options
|
Trimmer, over-tape unit,
dust cleaner, imprinter (machine dimensions
will vary).
|
|
 |
|

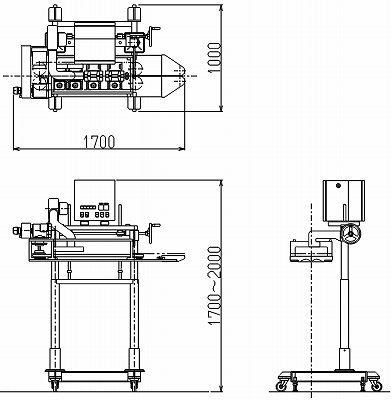

OUTWARD
DIMENSIONS
|
|
|
 Dimensions vary with specifications. |
 |
|

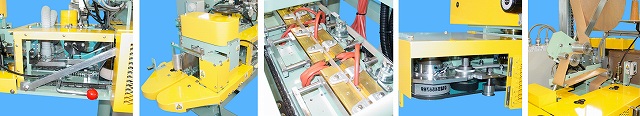

Dust cleaner
|
Trimmer
|
Heater
|
Imprinter
|
Over-tape unit
|
HS-22-SD
: Heat sealer for both as Kraft bag and PE bag
|
|
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
