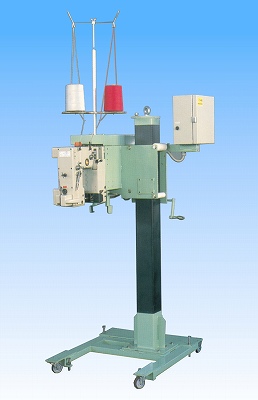

NLI offers the latest in bag closing
technology with the A1-PB height adjustable pillar and
DS-9C high-speed,
oil enclosed sewing head. Available for both plain
sewn and crepe-tape bound closure. This closing system
can be used with a range of NLI conveyors or an
existing conveyor.
|
|
SPECIFICATIONS
|
|
Sewing Head Height
|
720-1,220mm from
floor to needle
|
|
Brake Motor
|
4P, 3 Phase, 0.75kW
or 0.4kW depends on conveyor speed
|
|
Start/Stop
|
Photo-switch
|
|
Sewing Head
|
Model DS-9C
|
|
Max. Speed
|
2,700r.p.m.
|
|
Stitch Width
|
7-10.5mm (standard
setting 10mm)
|
|
Stitch Type
|
Single Needle,
Double Thread Chain Stitch (single
thread available by special order)
|
|
Cutter Type
|
Air Cylinder Driven
Guillotine Cutter
|
|
Air Pressure
|
4 kg/cm2
|
|
Air Consumption
|
3.5NL/min.
|
|
Lubrication System
|
Automatic Oil Bath
System (Recommended Oil : Shell Tellus
Oil #32)
|
|
Oil Feeding Volume
|
1,740 cc (approx.)
|
|
Machine Pulley Dia.
|
100 mm, Variable
speed pulley available by special
order
|
|
Needle Type
|
DR-H30 #26
|
|
Thread
|
Synthetic or
Cotton, 20/6, 20/9
|
|
Crepe-tape stand
and binder are not included as a
standard supply of plain sewn closure.
Please specify plain sewn closure or
crepe-tape bound closure when
ordering.
|
|
|
|
MODEL CM4900-1,
CM4900-3 AND MODEL CP4900
AUTOMATIC INFEED DEVICES WITH PEDESTAL
Automatic infeed
devices, Model CM4900-1, CM4900-3 and CP4900 can be
mounted on Model A1-PB (DS-9C) pedestal type bag
closing machine.
Infeed Speed : Standard 10 m/min. Please specify
conveyor speed when ordering. (Variable speed
available at option.)
Induction Motor : 0.2 kW, 4P, 3 Phase. Please specify
voltage and hertz when ordering.
|
A1-PB+CP4900
|
A1-PB+CM4900-3
|
A1-PB+CM4900-1
Automatic
Infeed Device for plain sewn closure on
paper bags and PP/PE woven cloth bags.
|
Automatic
Infeed and Bag Top Folding Device for plain
sewn closure on PP/PE woven cloth bags.
Bag
Top Empty Space Required for Folding :
170-200 mm
Bag Top Folding Depth : 30-60mm
|
Automatic
Infeed and Bag Top Trimming Device for
crepe-tape bound closure on paper bags.
Crepe-Tape Width: Standard 55 mm, other
width available.
|
|
|
|
PACKING INFORMATION
|
|
Model
|
|
|
|
|
|
Net Weight
(approx.)
|
280kg
|
300kg
|
320kg
|
250kg
|
|
Gross Weght
(approx.)
|
390kg
|
430kg
|
450kg
|
350kg
|
|
Measurement
(approx.)
|
1.83M3
|
2.84M3
|
3.2M3
|
2.29M3
|
|
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
