EASE OF USE IS FURTHER
ENHANCED FOR HIGHER PRODUCTIVITY
|
|
Features
- Sewing head is
vertically adjusted simply with a handle.
- The carrier table is
protected against derailment and provided
with automatic return mechanism to ensure
stable operation.
- The machine with casters
is easy to move to the best location for
bag closing.
- Not limited by bag
materials. Unskilled operators can close
bags stably.
- Stitch width is
adjustable between 7 and 12m
|

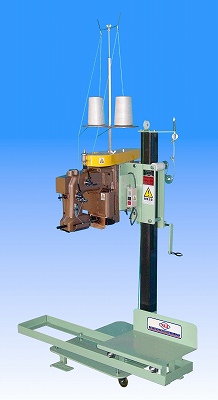

B-2 (DS-2II)
Simple to
use.
Stable bagging
with unskilled operators.
|
|
|
|
Capacity
|
200 - 300b/h
|
|
Dimensions
|
1,180 (L) x 830
(W) x 2,200mm (H)
(incl. thread stand)
|
|
Drive
|
200W
(1- or 3-ph motor)
|
|
Carrier table
|
455 (L) x 328mm
(W)
|
|
Sewer height
|
Adjustable
between 290 and 750mm
(carrier table to needle center)
|
|
Weight
|
149kg
|
|
Sewing head
|
Stitch width
|
7 - 12mm
|
|
Thread
|
20x6 20x9
30x12
|
|
Needle
|
DRx2 #25 -
26
|
|
Thread cutter
|
Automatic cutter
|
|
Use
|
For paper,
hessian,
resin-cloth, cotton
and other bags
|
|
|
THE SMALL-SIZED CLOSER IS
EASY TO OPERATE AND LOCATED IN OPTIMUM LOCATION
QUICKLY.
|
|

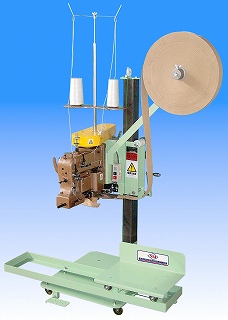

B-2 (DS-C)
A crepe cliff
is a completeness automatic system.
|
Features
- Sewing head is
vertically adjusted simply with a handle.
The head is easily adjusted to bag height.
- Crepe tape unit can be
mounted. Taping for nice-looking finish is
automatically performed.
- The table is set low
for easy loading of filled bags. The table
returns automatically to home position
when you remove the closed bag from the
table.
- The pedestal with
casters is easy to transport.
- Stitch width is
adjustable between 7 and 12m
|
B-2 (DS-C)
Specifications
|
|
Capacity
|
200 - 300b/h
|
|
Dimensions
|
1,180 (L) x 830
(W) x 2,200mm (H)
(incl. thread stand)
|
|
Drive
|
200W
(1- or 3-ph motor)
|
|
Carrier table
|
450 (L) x 307mm
(W)
|
|
Sewer height
|
Adjustable
between 290 and 750mm
(carrier table to needle center)
|
|
Weight
|
152kg
|
|
Sewing head
|
Stitch width
|
7 - 12mm
|
|
Thread
|
20x6 20x9
30x12
|
|
Needle
|
DRx2 #25 -
26
|
|
Thread cutter
|
Built-in fully
automatic cutter
|
|
Crepe tape
|
|
Use
|
For paper bags
only
|
|
|
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
