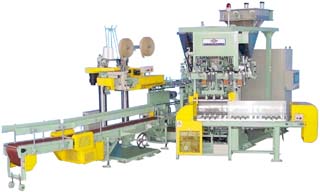

The photo shows Model
6CM-PL with options (CT4500, A2-P2L and
DS-9).
-
Photos and
illustrations show the L-type. The
R-type is also available with the
control panel and bag feeder installed
on the opposite side.
|
|
Specifications
|
|
Model
|
6CM-P
|
|
Capacity ※1
|
2,000bags/hr max.
|
|
Set weight
|
20-30kg/bags
|
|
Bag type
|
Paper
Cloth bags
PE bags
|
|
Bag size ※2
|
Width of
empty bag
|
380 to 460 mm
|
|
Length of
empty bag
|
750 to 950 mm
|
|
Air consumption
|
2,000NL/min
|
|
Power
requirements
|
21.0kW
|
|
weight
|
6.0t
|
※1Varies
with the product and operating environments.
※2Contact us
for applications involving common use of
different bags, use of special bags, and bag
dimensions and set weights outside the above
range.
|
Feeder (interior)
Bags are fed one by one accurately according
to the motion of the rotary chute.
|

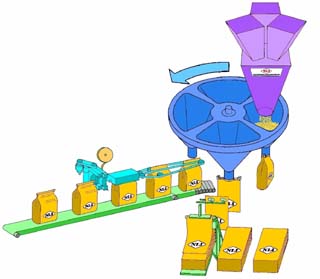

Rotary chute
The 4-station rotary chute receives weighed
products and fills them in bags sequentially
while turning at a uniform speed. Each station
is provided with gusset clamp, expansion
hopper and shutter. Direction of rotation is
selected according to the layout of the plant.
|

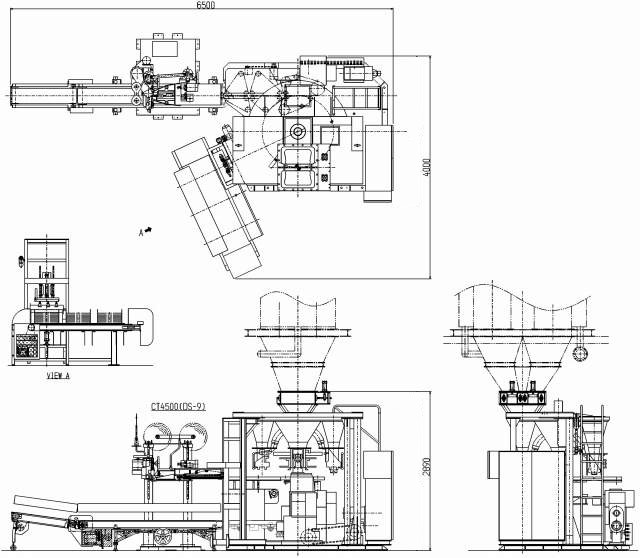

Dimensions vary with specifications.
