FULLY AUTOMATIC BAGGING
MACHINE WITH AUTOMATIC ROPE TYING MECHANISM
Automatic Tying Machine for Class 1 Rice/wheat Bags
- This tying machine is exclusively used for bags
with strings.
- Tying is a hard work requiring manpower and time.
The newly developed tying machine solved the
problem.
- Bags for filling 30kg rice or wheat are clamped,
opened, filled, formed and wound continuously. The
bag is finally tied with the string automatically.
- A series of timers are easily set on the graphic
panel. The diagnostic function is included.
|
 |
|
Specifications
|
|
Model
|
3CM-5X-1
|
|
Capacity ※
1
|
120bags/hr max.
|
|
Set weight
|
20 - 30kg/bags
|
|
Bag type
|
Rice/wheat bags
with tie strings
|
|
Bag size
|
Width of
emtpy bag
|
380 to 460 mm
|
|
Length of
empty bag
|
750 to 950 mm
|
|
Air consumption
|
500NL/min
|
|
Power
requirements
|
0.6kW
|
|
weight
|
0.5t
|
|
※ 1
Varies with the product and
operating environments.
※ 2
Contact us for applications
involving common use of
different bags,
use of special bags, and bag
dimensions and set weights outside
the above range.
|
|
|
|

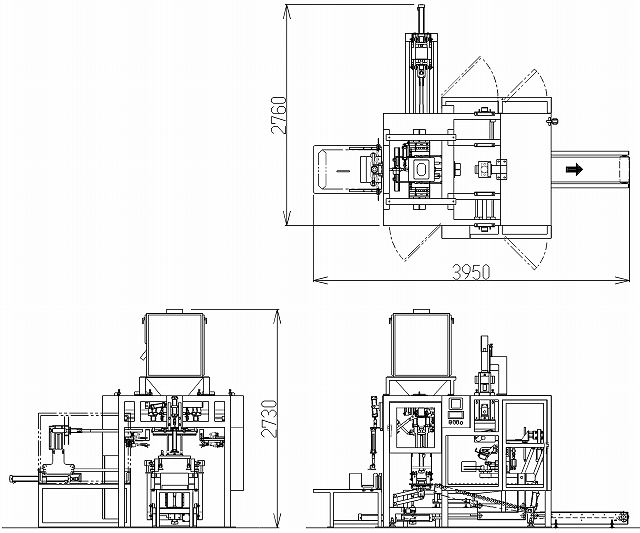

OUTWARD
DIMENSIONS
|
|
|
 Dimensions vary with specifications. |
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
|
