- Product name and Lot No. are printed on open-mouth
kraft paper bags.
- Bag feeding, transferring, printing and discharge
are automatically and continually performed.
|
|
|

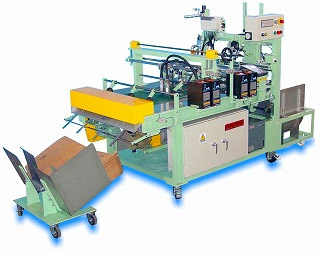

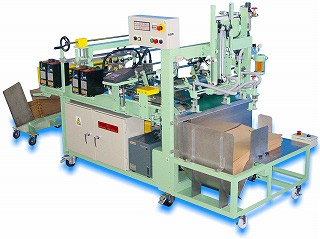

 Photograph is model EFS-22 with optional
equipment. |
|
Specifications
|
|
Capacity *1
|
Max. 900b/h
|
|
Container materials
|
Kraft paper bag
(with or without gusset)
|
|
Container dimensions *2
|
380 - 540(W) × 700 - 900(L)
|
|
Standard loading
|
|
|
Power source
|
Power circuit:
200/220VAC 50/60Hz 3-phase
Control circuit:
100VAC 1-phase (transformer is used)
|
|
Air consumption *3
|
Air volume: approx.
300NL/min
|
|
(clean air)
|
Air pressure: 5kg/cm2
min.
|
|
Printing system
|
Ink jet PC coder
|
|
*1 Varies with the condition
of bags.
*2 Contact us for other bag dimensions.
*3 The mentioned speed is not achieved if air
volume is insufficient.
|
- The samples are made on the standard ink
jet printer HQS (shown) from Kishu Giken
Kogyo.
- Ink jet printers of other make are also
available for incorporation
|
 |
|
|

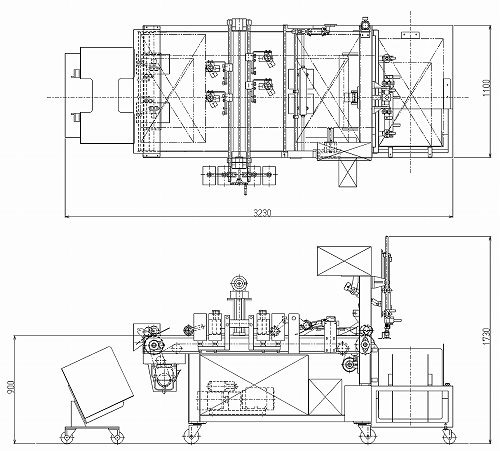

OUTWARD
DIMENSIONS
|
|
|
Dimensions vary with specifications. |
- Specifications should be changed
without previous notice
- There are some differences between
shown picture and specifications of each MODEL.
- Diversion without permission should
be prohibited.
|
